Utilisation
Applications extrêmes qui requièrent une haute résistance à la fatique.
Pour montage statique ou dynamique (charge oscillante ou choc)
Fabrication
Conformité aux normes DIN 2093, dimensions et tolérances.
Conditionnement : huilées.

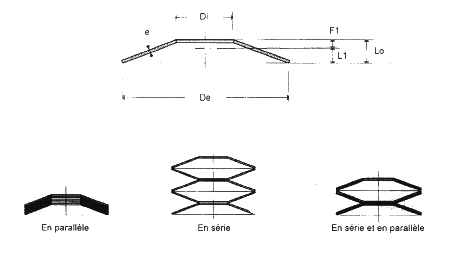

Diamètre extérieur de mm	Diamètre intérieur Di mm	Epaisseur e mm	Hauteur Libre Lo mm	Hauteur en Charge L1 mm	Charge maxi P1 mm	Référence N°	Groupe de prix
8.00	3.20	0.20	0.40	0.25	26	RB0080-0032-0020	B02
8.00	3.20	0.30	0.55	0.36	104	RB0080-0032-0030	B02
8.00	3.20	0.40	0.60	0.45	185	RB0080-0032-0040	B02
8.00	4.20	0.20	0.40	0.21	39	RB0080-0042-0020	B02
8.00	4.20	0.30	0.55	0.36	118	RB0080-0042-0030	B01
8.00	4.20	0.40	0.60	0.45	209	RB0080-0042-0040	B01
10.00	3.20	0.30	0.65	0.39	98	RB0100-0032-0030	B02
10.00	3.20	0.40	0.70	0.48	179	RB0100-0032-0040	B02
10.00	3.20	0.50	0.75	0.56	278	RB0100-0032-0050	B02
10.00	4.20	0.40	0.70	0.48	189	RB0100-0042-0040	B02
10.00	4.20	0.50	0.75	0.56	294	RB0100-0042-0050	B02
10.00	4.20	0.60	0.85	0.66	502	RB0100-0042-0060	B02
10.00	5.20	0.25	0.50	0.27	58	RB0100-0052-0025	B02
10.00	5.20	0.40	0.70	0.48	209	RB0100-0052-0040	B01
10.00	5.20	0.50	0.75	0.56	325	RB0100-0052-0050	B01
12.00	4.20	0.40	0.80	0.50	178	RB0120-0042-0040	B02
12.00	4.20	0.50	0.85	0.59	284	RB0120-0042-0050	B01
12.00	4.20	0.60	1.00	0.70	556	RB0120-0042-0060	B01
12.00	5.20	0.50	0.90	0.60	349	RB0120-0052-0050	B02
12.00	5.20	0.60	0.95	0.69	506	RB0120-0052-0060	B02
12.50	6.20	0.35	0.80	0.46	151	RB0125-0062-0035	B02
12.50	6.20	0.50	0.85	0.59	293	RB0125-0062-0050	B01
12.50	6.20	0.70	1.00	0.78	659	RB0125-0062-0070	B01
14.00	7.20	0.35	0.80	0.46	123	RB0140-0072-0035	B02
14.00	7.20	0.50	0.90	0.60	279	RB0140-0072-0050	B01
14.00	7.20	0.80	1.10	0.87	796	RB0140-0072-0080	B01
15.00	5.20	0.40	0.95	0.54	175	RB0150-0052-0040	B02
15.00	5.20	0.50	1.00	0.63	278	RB0150-0052-0050	B02
15.00	5.20	0.60	1.05	0.71	407	RB0150-0052-0060	B02
15.00	5.20	0.70	1.10	0.80	555	RB0150-0052-0070	B02
15.00	6.20	0.50	1.00	0.63	289	RB0150-0062-0050	B02
15.00	6.20	0.60	1.05	0.71	423	RB0150-0062-0060	B02
15.00	6.20	0.70	1.10	0.80	577	RB0150-0062-0070	B02
15.00	8.20	0.70	1.10	0.80	665	RB0150-0082-0070	B02
15.00	8.20	0.80	1.20	0.90	982	RB0150-0082-0080	B02
16.00	8.20	0.40	0.90	0.53	154	RB0160-0082-0040	B02
16.00	8.20	0.60	1.05	0.71	410	RB0160-0082-0060	B01
16.00	8.20	0.90	1.25	0.99	1012	RB0160-0082-0090	B01
18.00	6.20	0.40	1.00	0.55	139	RB0180-0062-0040	B02
18.00	6.20	0.50	1.10	0.65	245	RB0180-0062-0050	B02
18.00	6.20	0.60	1.20	0.75	400	RB0180-0062-0060	B02
18.00	6.20	0.70	1.25	0.84	552	RB0180-0062-0070	B01
18.00	6.20	0.80	1.30	0.92	725	RB0180-0062-0080	B01
18.00	8.20	0.70	1.25	0.84	596	RB0180-0082-0070	B02
18.00	8.20	1.00	1.40	1.10	1181	RB0180-0082-0100	B02
18.00	9.20	0.45	1.05	0.60	214	RB0180-0092-0045	B02
18.00	9.20	0.70	1.20	0.83	566	RB0180-0092-0070	B01
18.00	9.20	1.00	1.40	1.10	1253	RB0180-0092-0100	B02
20.00	8.20	0.60	1.30	0.77	412	RB0200-0082-0060	B02

Diamètre extérieur de mm	Diamètre intérieur Di mm	Epaisseur e mm	Hauteur Libre Lo mm	Hauteur en Charge L1 mm	Charge maxi P1 mm	Référence N°	Groupe de prix
20.00	8.20	0.70	1.35	0.86	568	RB0200-0082-0070	B02
20.00	8.20	0.80	1.40	0.95	751	RB0200-0082-0080	B02
20.00	8.20	0.90	1.45	1.04	953	RB0200-0082-0090	B01
20.00	8.20	1.00	1.55	1.14	1294	RB0200-0082-0100	B01
20.00	10.20	0.50	1.15	0.66	254	RB0200-0102-0050	B02
20.00	10.20	0.80	1.35	1.94	748	RB0200-0102-0080	B01
20.00	10.20	0.90	1.45	1.04	1049	RB0200-0102-0090	B03
20.00	10.20	1.00	1.55	1.14	1424	RB0200-0102-0100	B03
20.00	10.20	1.10	1.55	1.21	1520	RB0200-0102-0110	B02
22.50	11.20	0.60	1.40	0.80	425	RB0225-0112-0060	B02
22.50	11.20	0.80	1.45	0.96	707	RB0225-0112-0080	B01
22.50	11.20	1.25	1.75	1.38	1928	RB0225-0112-0125	B02
23.00	8.20	0.70	1.50	0.90	543	RB0230-0082-0070	B02
23.00	8.20	0.80	1.55	0.99	718	RB0230-0082-0080	B02
23.00	8.20	0.90	1.70	1.10	1079	RB0230-0082-0090	B02
23.00	10.20	0.90	1.65	1.09	1057	RB0230-0102-0090	B03
23.00	10.20	1.00	1.70	1.17	1315	RB0230-0102-0100	B02
23.00	12.20	1.25	1.85	1.40	2330	RB0230-0122-0125	B03
25.00	12.20	0.70	1.60	0.92	599	RB0250-0102-0070	B02
25.00	12.20	0.90	1.60	1.07	862	RB0250-0122-0090	B02
25.00	12.20	1.50	2.05	1.64	2924	RB0250-0122-0150	B03
28.00	10.20	0.80	1.75	1.04	661	RB0280-0102-0080	B03
28.00	10.20	1.00	1.90	1.23	1129	RB0280-0102-0100	B02
28.00	10.20	1.25	2.05	1.45	1852	RB0280-0102-0125	B02
28.00	12.20	1.00	1.95	1.24	1267	RB0280-0122-0100	B03
28.00	12.20	1.25	2.10	1.46	2081	RB0280-0122-0125	B03
28.00	12.20	1.50	2.25	1.69	3075	RB0280-0122-0150	B03
28.00	14.20	0.80	1.80	1.05	801	RB0280-0142-0080	B03
28.00	14.20	1.00	1.80	1.20	1107	RB0280-0142-0100	B02
28.00	14.20	1.25	2.10	1.46	2238	RB0280-0142-0125	B05
28.00	14.20	1.50	2.15	1.66	2839	RB0280-0142-0150	B03
31.50	16.30	0.80	1.85	1.06	687	RB0315-0163-0080	B05
31.50	16.30	1.25	2.15	1.48	1912	RB0315-0163-0125	B03
31.50	16.30	1.75	2.45	1.92	3869	RB0315-0163-0175	B04
34.00	12.30	1.00	2.25	1.31	1172	RB0340-0122-0100	B03
34.00	12.30	1.25	2.45	1.53	1814	RB0340-0122-0125	B05
34.00	12.30	1.50	2.60	1.75	2719	RB0340-0122-0150	B03
34.00	14.30	1.25	2.40	1.54	1988	RB0340-0142-0125	B07
34.00	14.30	1.50	2.55	1.76	2982	RB0340-0142-0150	B07
34.00	16.30	1.50	2.55	1.76	3153	RB0340-0163-0150	B07
34.00	16.30	2.00	2.85	2.21	5779	RB0340-0163-0200	B07
35.50	18.30	0.90	2.05	1.19	832	RB0355-0183-0090	B04
35.50	18.30	1.25	2.25	1.50	1698	RB0355-0183-0125	B03
35.50	18.30	2.00	2.80	2.20	5184	RB0355-0183-0200	B04
40.00	14.30	1.25	2.65	1.60	1779	RB0400-0142-0125	B07
40.00	14.30	1.50	2.75	1.81	2544	RB0400-0142-0150	B04
40.00	14.30	2.00	3.05	2.26	4766	RB0400-0142-0200	B07
40.00	16.30	1.50	2.80	1.83	2748	RB0400-0163-0150	B07
40.00	16.30	2.00	3.10	2.28	5166	RB0400-0163-0200	B07
40.00	18.30	2.00	3.15	2.29	5653	RB0400-0183-0200	B07

Diamètre extérieur de mm	Diamètre intérieur Di mm	Epaisseur e mm	Hauteur Libre Lo mm	Hauteur en Charge L1 mm	Charge maxi P1 mm	Référence N°	Groupe de prix
40.00	20.40	1.00	2.30	1.33	1016	RB0400-0204-0100	B04
40.00	20.40	1.50	2.65	1.79	2620	RB0400-0204-0150	B04
40.00	20.40	2.00	3.10	2.28	5698	RB0400-0204-0200	B06
40.00	20.40	2.25	3.15	2.48	6497	RB0400-0204-0225	B04
40.00	20.40	2.50	3.45	2.74	9384	RB0400-0204-0250	B06
45.00	22.40	1.25	2.85	1.65	1890	RB0450-0224-0125	B06
45.00	22.40	1.75	3.05	2.08	3644	RB0450-0224-0175	B04
45.00	22.40	2.50	3.50	2.75	7712	RB0450-0224-0250	B05
50.00	18.30	1.50	3.30	1.95	2602	RB0500-0183-0150	B08
50.00	18.30	2.00	3.50	2.38	4564	RB0500-0183-0200	B08
50.00	18.30	2.50	3.85	2.90	7355	RB0500-0183-0250	B09
50.00	18.30	3.00	3.70	3.20	6374	RB0500-0183-0300	B09
50.00	20.40	2.00	3.50	2.38	4685	RB0500-0204-0200	B08
50.00	20.40	2.50	3.85	2.84	7915	RB0500-0204-0250	B09
50.00	22.40	2.00	3.60	2.40	5219	RB0500-0224-0200	B08
50.00	22.40	2.50	3.90	2.85	8505	RB0500-0224-0250	B09
50.00	25.40	1.25	2.85	1.65	1549	RB0500-0254-0125	B06
50.00	25.40	2.00	3.40	2.35	4760	RB0500-0254-0200	B06
50.00	25.40	2.50	3.90	2.85	9058	RB0500-0254-0250	B09
50.00	25.40	3.00	4.10	3.28	11970	RB0500-0254-0300	B07
56.00	28.50	1.50	3.45	1.99	2621	RB0560-0285-0150	B08
56.00	28.50	2.00	3.60	2.40	4436	RB0560-0285-0200	B07
56.00	28.50	3.00	4.30	3.33	11382	RB0560-0285-0300	B08
60.00	20.40	2.00	4.10	2.52	4724	RB0600-0204-0200	B08
60.00	20.40	3.00	4.70	3.42	11563	RB0600-0204-0300	B09
60.00	25.40	2.50	4.40	2.97	8159	RB0600-0254-0250	B11
60.00	25.40	3.00	4.65	3.41	11762	RB0600-0254-0300	B11
60.00	30.50	3.00	4.70	3.42	13219	RB0600-0305-0300	B12
60.00	30.50	3.50	5.00	3.88	18143	RB0600-0305-0350	B12
63.00	31.00	1.80	4.15	2.39	4236	RB0630-0310-0180	B09
63.00	31.00	2.50	4.25	2.94	7185	RB0630-0310-0250	B10
63.00	31.00	3.50	4.90	3.85	15017	RB0630-0310-0350	B13
70.00	25.50	2.00	4.50	2.63	4435	RB0700-0255-0200	B12
70.00	30.50	2.50	4.90	3.10	8026	RB0700-0305-0250	B14
70.00	30.50	3.00	5.10	3.52	11420	RB0700-0305-0300	B14
70.00	35.50	3.00	5.10	3.52	12281	RB0700-0355-0300	B14
70.00	35.50	4.00	5.80	4.45	23910	RB0700-0355-0400	B22
70.00	40.50	5.00	6.20	5.30	33653	RB0700-0405-0500	B26
71.00	36.00	2.00	4.60	2.65	5141	RB0710-0360-0200	B13
71.00	36.00	2.50	4.50	3.00	6722	RB0710-0360-0250	B11
71.00	36.00	4.00	5.60	4.40	20524	RB0710-0360-0400	B15
80.00	31.00	3.00	5.50	3.63	10346	RB0800-0310-0300	B15
80.00	31.00	4.00	6.10	4.52	19384	RB0801-0310-0400	B23
80.00	36.00	3.00	5.70	3.67	11912	RB0800-0360-0300	B15
80.00	41.00	2.25	5.20	2.99	6609	RB0800-0410-0225	B15
80.00	41.00	3.00	5.30	3.58	10512	RB0800-0410-0300	B12
80.00	41.00	4.00	6.20	4.55	22861	RB0800-0410-0400	B23
80.00	41.00	5.00	6.70	5.42	33541	RB0800-0410-0500	B21
90.00	46.00	2.50	5.70	3.30	7680	RB0900-0460-0250	B17
90.00	46.00	3.50	6.00	4.13	14153	RB0900-0460-0350	B18

Diamètre extérieur de mm	Diamètre intérieur Di mm	Epaisseur e mm	Hauteur Libre Lo mm	Hauteur en Charge L1 mm	Charge maxi P1 mm	Référence N°	Groupe de prix
90.00	46.00	5.00	7.00	5.50	31337	RB0900-0460-0500	B24
100.00	41.00	4.00	7.20	4.80	20240	RB1000-0410-0400	B27
100.00	41.00	5.00	7.75	5.69	32344	RB1000-0410-0500	B28
100.00	51.00	2.70	6.20	3.58	8604	RB1000-0510-0270	B20
100.00	51.00	3.50	6.30	4.20	13063	RB1000-0510-0350	B18
100.00	51.00	4.00	7.00	4.75	20662	RB1000-0510-0400	B30
100.00	51.00	5.00	7.80	5.70	36319	RB1000-0510-0500	B34
100.00	51.00	6.00	8.20	6.55	47995	RB1000-0510-0600	B28
112.00	57.00	4.00	7.20	4.87	17743	RB1120-0570-0400	B16
112.00	57.00	6.00	8.50	6.63	43683	RB1120-0570-0600	B19
125.00	51.00	4.00	8.50	5.13	19806	RB1250-0510-0400	B21
125.00	51.00	5.00	8.90	5.97	30652	RB1250-0510-0500	B21
125.00	51.00	6.00	9.40	6.85	44283	RB1250-0510-0600	B25
125.00	61.00	5.00	9.00	6.00	33947	RB1250-0610-0500	B19
125.00	61.00	6.00	9.60	6.90	50694	RB1250-0610-0600	B25
125.00	61.00	8.00	10.90	8.72	93526	RB1250-0610-0800	B29
125.00	64.00	5.00	8.50	5.88	29892	RB1250-0640-0500	B21
125.00	64.00	8.00	10.60	8.65	85879	RB1250-0640-0800	B29
125.00	71.00	8.00	10.40	8.60	85447	RB1250-0710-0800	B29
140.00	72.00	5.00	9.00	6.00	27905	RB1400-0720-0500	B25
140.00	72.00	8.00	11.20	8.80	85204	RB1400-0720-0800	B32
150.00	61.00	5.00	10.30	6.88	31024	RB1500-0610-0500	B31
150.00	61.00	6.00	10.80	7.20	45481	RB1500-0610-0600	B33
150.00	71.00	6.00	10.80	7.20	48129	RB1500-0710-0600	B33
150.00	71.00	8.00	12.00	9.00	89802	RB1500-0710-0800	B35
150.00	81.00	8.00	11.70	8.92	89483	RB1500-0810-0800	B36
150.00	81.00	10.00	13.00	10.75	139051	RB1500-0810-1000	B37
160.00	82.00	6.00	10.50	7.13	40985	RB1600-0820-0600	B36
160.00	82.00	10.00	13.50	10.88	138255	RB1600-0820-1000	B37
180.00	92.00	6.00	11.10	7.27	37481	RB1800-0920-0600	B37
180.00	92.00	10.00	14.50	11.00	125349	RB1800-0920-1000	B39
200.00	82.00	8.00	14.20	9.55	77992	RB2000-0820-0800	B39
200.00	82.00	10.00	15.50	11.38	129374	RB2000-0820-1000	B40
200.00	92.00	10.00	15.60	11.40	137612	RB2000-0920-1000	B40
200.00	102.00	8.00	13.60	9.40	76336	RB2000-1020-0800	B39
200.00	102.00	10.00	15.60	11.40	145277	RB2000-1020-1000	B40
200.00	102.00	12.00	16.20	13.05	182920	RB2000-1020-1200	B41
200.00	102.00	14.00	18.20	15.05	289023	RB2000-1020-1400	B42
225.00	112.00	8.00	14.50	9.63	70710	RB2250-1120-0800	B41
225.00	112.00	12.00	17.00	13.25	170923	RB2250-1120-1200	B43
250.00	127.00	10.00	17.00	11.75	118988	RB2500-1270-1000	B44
250.00	127.00	14.00	19.60	15.40	248692	RB2500-1270-1400	B45
